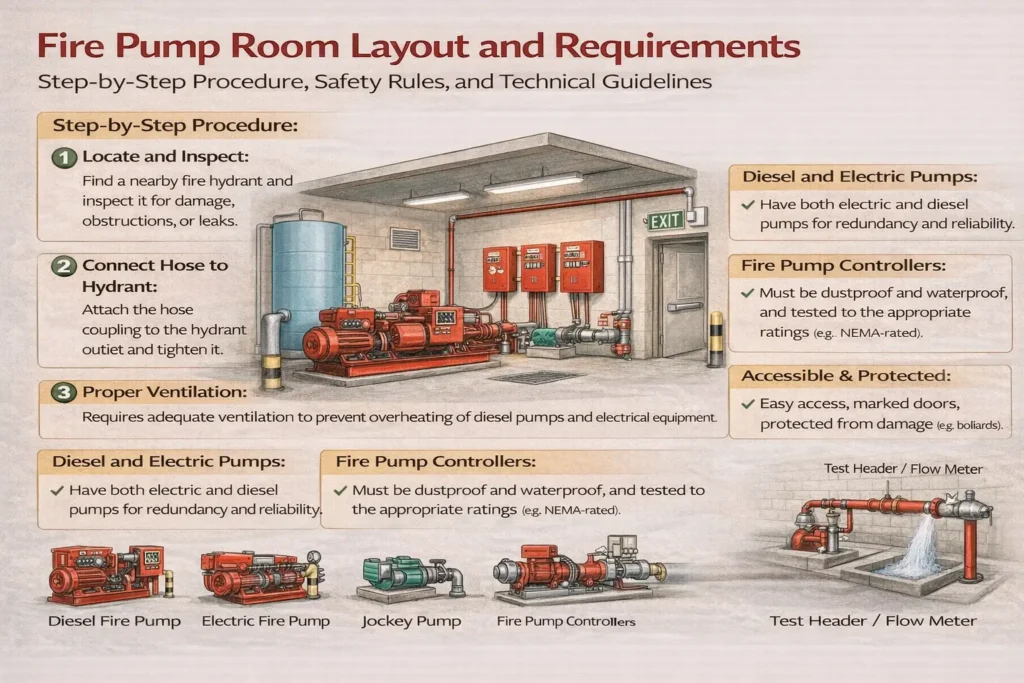

Fire Pump Room Layout and Requirements: Complete Engineering Guide for Hydrant Systems
A fire pump room is the most critical component of any building’s fire protection infrastructure. It houses the pumps and controls that ensure firefighting water is available with adequate pressure and flow at all times. When designed poorly, a pump room can lead to catastrophic failure during emergencies—resulting in inadequate water supply, system collapse, and uncontrolled fire spread.
This comprehensive engineering guide provides an in-depth understanding of pump room layout, pump selection, suction and discharge piping requirements, code compliance, installation criteria, safety measures, and best engineering practices as per NFPA 20, NFPA 22, NFPA 24, IS 15301, and NBC 2016.
This guide is intended for fire engineers, MEP designers, safety officers, architects, commissioning engineers, facility managers, and fire inspectors.
Understanding the Role of a Fire Pump Room
A fire pump room is responsible for maintaining the required water pressure in a building’s fire protection system. It ensures smooth, automatic operation of the fire network during a fire emergency.
Purpose of the Pump Room
A well-designed pump room:
- Boosts water pressure to meet hydrant/sprinkler demand
- Supplies design flow under fire conditions
- Protects pumps and controllers from environmental damage
- Maintains 24/7 readiness
- Allows safe access for maintenance and inspection
- Ensures operation even during electrical failure (via diesel pump)
Key Functions of a Fire Pump System
- Automatic start upon pressure drop
- Stable discharge pressure
- Continuous high-pressure water supply
- Pressure maintenance through jockey pump
- Pump protection through controllers
- Redundancy in case of primary pump failure
According to HSE fire and explosion guidance, fire protection installations must be suitably designed, accessible, and maintained to ensure effective operation during emergencies.
Fire Pump Room Components
A pump room contains mechanical, electrical, hydraulic, and control components that together form the firefighting engine of a building.
Fire Pumps
Electric Fire Pump
- Primary firefighting pump
- Starts automatically via pressure switch
- Must deliver 100% rated flow at rated pressure
- Powered by a dedicated, fire-rated electrical feeder
Diesel Fire Pump
- Mandatory backup for high-risk buildings
- Works independently of electrical power
- Requires battery bank, fuel system, and ventilation
- Must be able to run for at least 8 hours
Jockey Pump
- Compensates for minor pressure losses
- Prevents frequent cycling of main pumps
- Maintains system pressure in standby mode
Controllers
Electric Pump Controller
Controls:
- Auto-start
- Overload protection
- Phase monitoring
- Alarm conditions
Diesel Pump Controller
Controls:
- Engine start/stop
- Battery charging
- Low oil pressure alarms
- High engine temperature alarms
- Overspeed protection
Jockey Pump Controller
Maintains pressure between:
- Cut-in pressure
- Cut-out pressure
Pump Room Layout Requirements
The layout of a fire pump room directly affects reliability, ease of maintenance, and code compliance.
Minimum Room Size Requirements
To ensure accessibility and safety:
- Minimum clearance around pumps: 1 meter
- Minimum ceiling height: 2.5 meters
- Additional space for controller panels
- Sufficient area for diesel exhaust and airflow
Spatial Arrangement Inside Pump Room
Pump Positioning
Pumps must be installed:
- Horizontally aligned
- On a common RCC foundation
- Close to the fire water tank to ensure flooded suction
- With straight suction piping
- Without stress on pump flanges
Foundation Requirements
- RCC block with anti-vibration pads
- Heavy anchor bolts
- Proper leveling to prevent coupling misalignment
Suction Piping Layout
The suction line design is a major determinant of pump performance. Incorrect suction piping can cause:
- Cavitation
- Vibration
- Impeller erosion
- Reduced flow
- Premature pump failure
Suction Header
This pipe connects the fire water tank to the suction flange of the pump.
Key Requirements
- Straight length equal to 5 × pipe diameter before pump
- Avoid elbows within 5D distance
- Suction pipe diameter must be larger than discharge line
- Flooded suction (pump below tank water level)
- Install strainer (Y-strainer or basket type)
- Air release valve to prevent air lock
Suction Valve Arrangement
- Gate valve
- Strainer
- Pressure gauge
- Non-return valve (only if required by system configuration)
Discharge Piping Layout
Discharge Header Components
- Check valve (mandatory)
- Butterfly or gate valve
- Pressure gauge
- Flow meter for testing
- Test line connection
Discharge Layout Requirements
- Smooth flow transitions
- No excessive bends
- Properly sized pipe supports
- No dead-ends or stagnant zones
Test Line Requirements
The test line simulates actual fire load.
Purpose
- Test pump performance
- Conduct annual inspection
- Verify compliance with NFPA 25 and IS 15301
Components
- Flow meter
- Test header (2-way/4-way/6-way)
- Dump line to tank or drain
Electrical and Power Requirements
Dedicated Power Supply
Fire pumps must be electrically independent.
Requirements:
- Separate electrical feeder
- Fire-rated cable routes
- Dedicated MCC room or panel
- Manual and automatic controls
- Automatic Transfer Switch (ATS) if required
Diesel Engine Support Systems
Battery Bank
- Two independent batteries
- One battery for cranking, one for controller
- Automatic battery charger
Fuel Tank
- Minimum 8-hour fuel capacity
- Fire-resistant enclosure
- Fuel level gauge
- Vent pipe
Exhaust System
- Insulated pipe routed outdoors
- Zero exhaust leakage inside pump room
- Backpressure within manufacturer limits
Ventilation Requirements
Adequate ventilation ensures pump longevity and safety.
Natural or Forced Ventilation
Pump rooms must remove:
- Engine heat
- Pump motor heat
- Exhaust fumes
Diesel Pump Ventilation Requirements
- High air intake volume
- Cross-ventilation
- Mechanical fans if required
Ventilation Calculations
Based on:
- Engine horsepower
- Room volume
- Heat dissipation
Lighting Requirements
- 300–500 lux illumination
- Maintenance-friendly lighting
- Emergency lights connected to backup power
Fire Safety Requirements Inside Pump Room
Fire Rating of Room
- Walls with 2-hour rating
- Fire-rated steel door
- Self-closing mechanism
No Storage Allowed
The pump room must be clear of:
- Combustible materials
- Flammable liquids
- Tools and equipment
Housekeeping
- Dry floor
- No oil spills
- No obstructions
Monitoring and Instrumentation
Pressure Gauges Installed On:
- Pump suction
- Pump discharge
- Pump room header
- Test header
Flow Meter
Measures real-time flow during testing.
Level Sensors
Ensure tank water levels are continuously monitored.
Pump Running Indicators
Visible alarms for:
- Pump running
- Phase failure
- Engine fault
- Low pressure
- High pressure
Water Supply Requirements
Dedicated Fire Water Tank
Key requirements:
- Independent compartment
- Separate from domestic water
- Anti-vortex plate
- Proper suction depth
- Adequate capacity based on fire load
Access and Safety Provisions
Two Access Doors (Recommended)
- For redundancy
- Emergency escape
- Equipment removal and installation
Clear Signage
- Label all valves and pipes
- Mark pump directions
- Warning signage
Non-Slip Flooring
Prevents slips during water discharge.
Drainage
- Floor drain
- Sump pump for water removal
Piping and Valve Layout Requirements
Color Coding
- Red = Fire water
- Yellow = Diesel
- Blue = Cooling water
Valve Accessibility
All valves must be reachable without obstruction.
Valves Used
- Gate valves
- Butterfly valves
- Pressure relief valves
- Air release valves
Generator and Electrical Isolation
Electrical Safety Measures
- Only pump motors and controllers permitted inside
- Flameproof fixtures for hazardous areas
- Proper bonding and grounding
Environmental Considerations
Temperature Control
Pump room temperature must be maintained within equipment limits.
Flood Protection
- Elevated room level
- Sump pit
- Waterproof electrical wiring
Compliance and Standards
International Standards
- NFPA 20 – Installation of fire pumps
- NFPA 22 – Water storage tanks
- NFPA 24 – Private fire service mains
Indian Standards
- IS 15301 – Fire pumps
- NBC 2016 – Fire safety provisions
- Local fire department rules
Inspection Checklist for Pump Room Layout
Visual Checks
- Pump alignment
- Accessibility of valves
- Pipe supports
- Proper lighting
- Adequate ventilation
Operational Checks
- Electric pump auto-start
- Diesel engine crank test
- Jockey pump operation
- Pressure stability
- Alarm functionality
Common Layout Mistakes to Avoid
Placing Pump Room Above Water Tank
Causes cavitation and pump failure.
Long, Curved Suction Pipes
Reduces pump efficiency by increasing friction and reducing NPSH.
Inadequate Ventilation
Leads to diesel engine overheating and auto shutdown.
Poor Valve Accessibility
Slows emergency response during breakdowns or testing.
Case Studies
Industrial Pump Failure Due to Poor Layout
A chemical facility had a suction header above tank level.
Result: Severe cavitation and pump collapse during fire drill.
Correction: Repositioned pump below tank with proper suction arrangement.
Diesel Pump Overheating
Poor ventilation caused frequent diesel shutdowns.
Solution: Installed fresh-air intake and forced ventilation system.
Sprinkler Pressure Drop
Cause: Undersized discharge header.
Correction: Replaced header and optimized valve arrangement.
Frequently Asked Questions (FAQs)
What is the ideal size of a fire pump room?
At least 1 meter clearance around pumps and a minimum ceiling height of 2.5 meters.
Why is a jockey pump required?
To maintain system pressure and prevent frequent cycling of main pumps.
What causes cavitation?
Low suction head, excessive bends, air leaks, or pumps above water tank.
Can storage be kept inside pump room?
No. Storage increases fire risk and violates NFPA 20.
How often should fire pumps be tested?
Weekly no-flow test, monthly diesel check, and annual full-flow test.
Why is ventilation important?
Ensures diesel engine cooling and prevents overheating of electrical components.
What should be done if diesel pump fails to start?
Check batteries, fuel level, controller alarms, and engine temperature.
Why must the suction pipe be larger than discharge pipe?
To prevent velocity increase, friction loss, and cavitation.
Conclusion
A fire pump room is a mission-critical life-safety installation that must be designed with engineering precision, code compliance, and operational reliability in mind. Proper pump placement, suction and discharge piping layout, electrical systems, ventilation, drainage, monitoring, and documentation ensure that the hydrant and sprinkler system delivers the required performance in a real fire emergency.
A well-designed pump room guarantees:
High operational safety
Reliable fire protection
Reduced maintenance issues
Long system life
Full regulatory compliance
